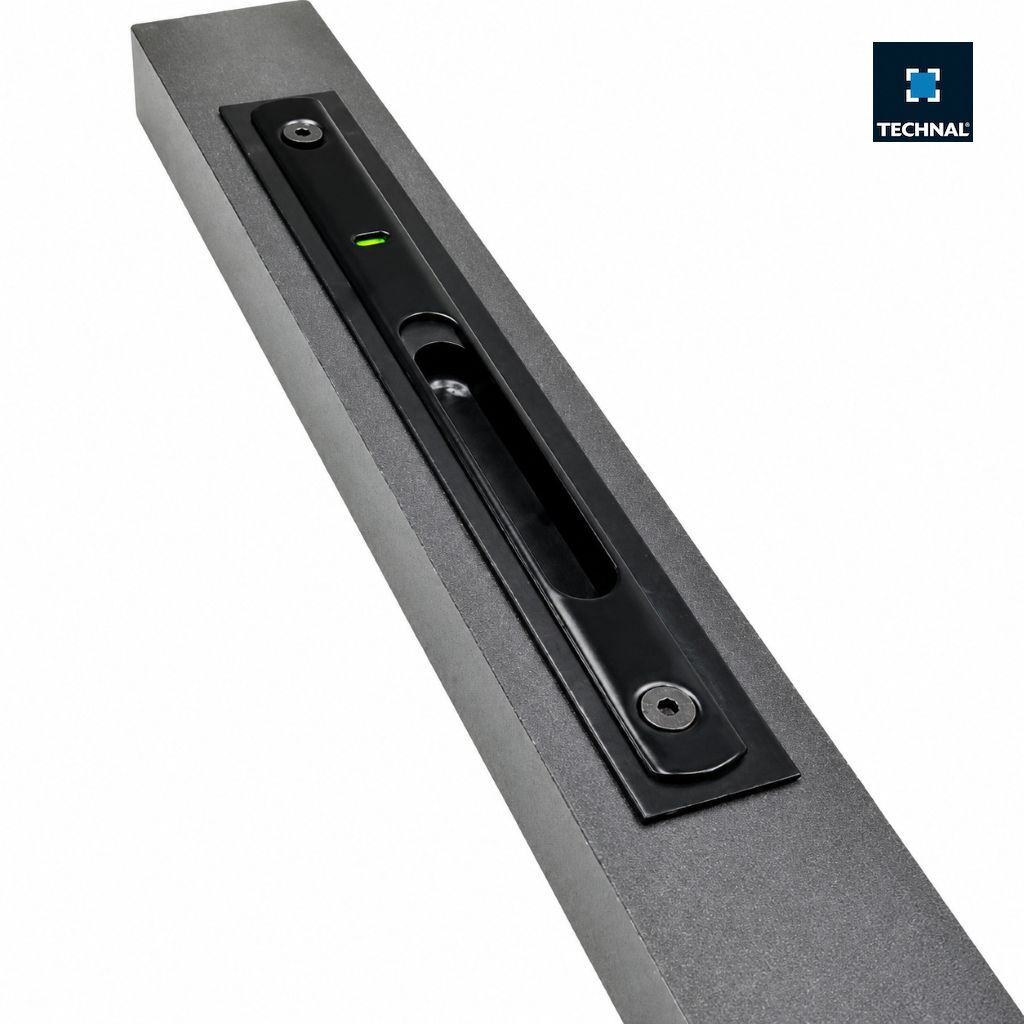

T3060P TECHNAL single sliding lock

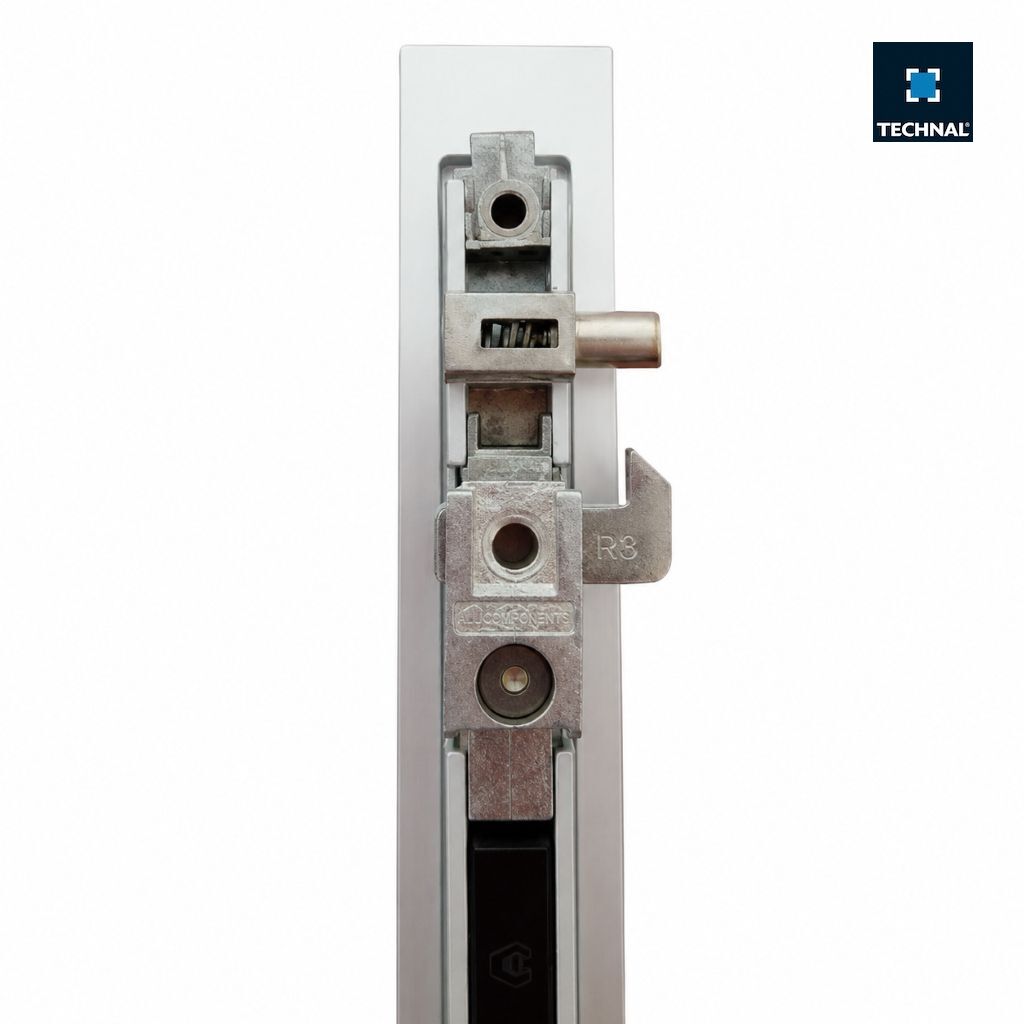

The TECHNAL T3060P single sliding lock is the original replacement solution for the discontinued T2940 lock. It is designed for an approximate 197 × 23 mm cut-out and includes an adapter plate to simplify replacement in existing aluminium profiles.

Technical specifications

• Reference: T3060P
• Replaces: TECHNAL T2940
• Type: Recessed single sliding lock
• Cut-out: approx. 197 × 23 mm
• Application: Aluminium sliding windows and doors
• Contents: Lock with adapter plate
• Material: Mixed assembly of aluminium, metal and technical components

Available colours

• Base Black — made to order / subject to availability
• Base White — made to order / subject to availability
• XFITSILVER — made to order / subject to availability

Compatibility

Designed as a replacement for the TECHNAL T2940 lock. Due to differences between profile generations, some installations may require a minor adjustment to the opening for the hook outlet.

Important information about lacquered finishes

TECHNAL® does not accept exchanges or returns due to colour for lacquered parts, as they are made to order according to the customer's specification. Please confirm the colour before placing your order.
