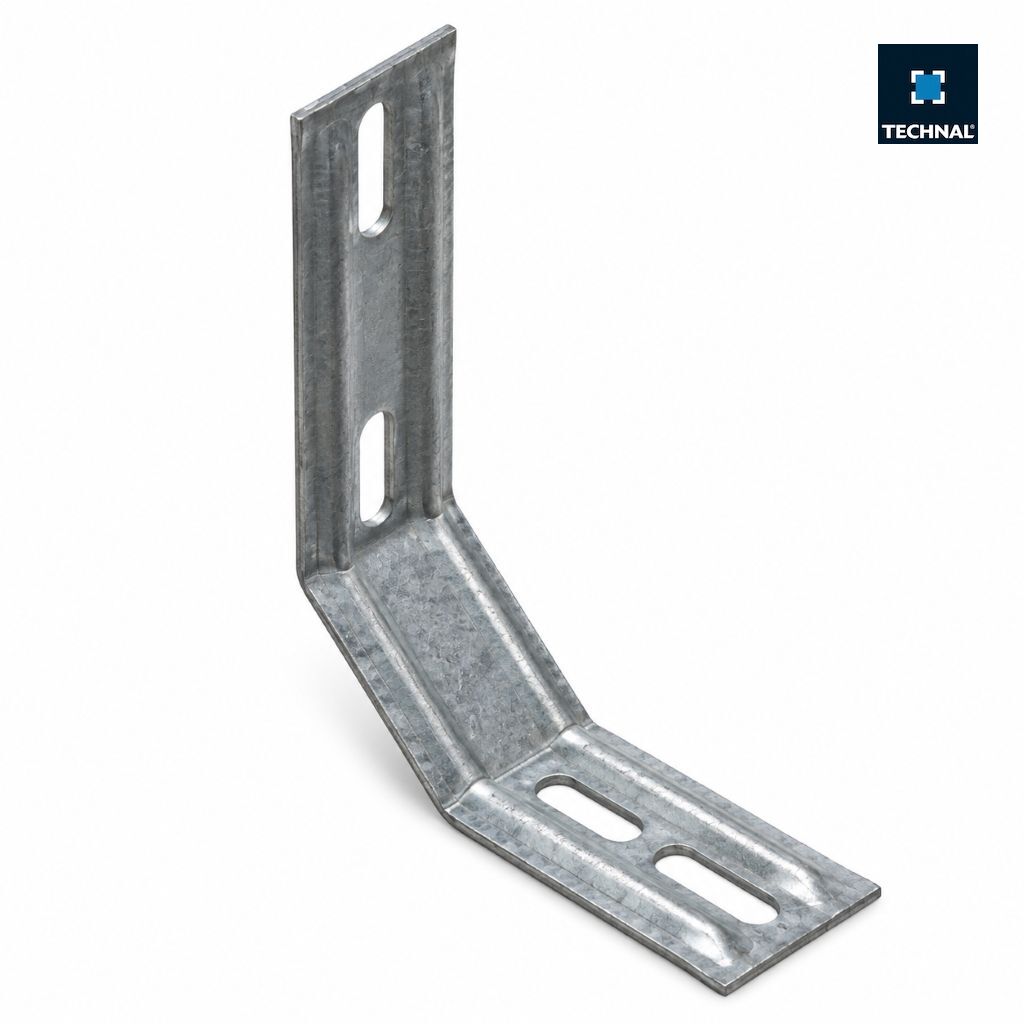

T700014 120/160 mm Fixing Bracket TECHNAL

The TECHNAL T700014 fixing bracket is an anchoring accessory for installing TECHNAL aluminium joinery with 120/160 mm lining or insulation. It secures the frame to the building structure using a fixing solution designed for this thickness.

Technical specifications

• Reference: T700014
• Type: Fixing bracket / anchoring bracket
• Size: 120/160 mm
• Application: Joinery fixing with lining or insulation
• Material: Galvanized steel
• Compatible systems: TECHNAL Soleal FY55, FY65, FYn55, GY55, GY65, GYn55, PY55, PY65, PYn55 and Titane PH65
• Pack: 10 units

Colours and finishes

• Galvanized steel — technical galvanized finish

Compatibility

Compatible with the listed TECHNAL systems when the installation requires a fixing bracket for 120/160 mm lining or insulation. Before ordering, check the reference and the joinery configuration.

Fixing bracket for aluminium joinery, compliant with the requirements of NF DTU 36.5.
