T940023 TECHNAL Adjustable Tilt-and-Turn Pivot Hinge Set

The TECHNAL T940023 adjustable tilt-and-turn hinge set is a pivot hinge set for Soleal FY55, FY65 and FY75 tilt-and-turn windows and French doors. It is suitable for sashes up to 130 kg and up to 1,600 mm wide.

Technical characteristics

• Reference: T940023
• Type: adjustable upper and lower pivot hinge set
• Compatibility: TECHNAL Soleal FY55, FY65 and FY75
• Capacity: sash up to 130 kg
• Sash width: Lv up to 1,600 mm
• Material: aluminium
• Installation from 100 to 130 kg: requires T940022 supplement

Colours and finishes

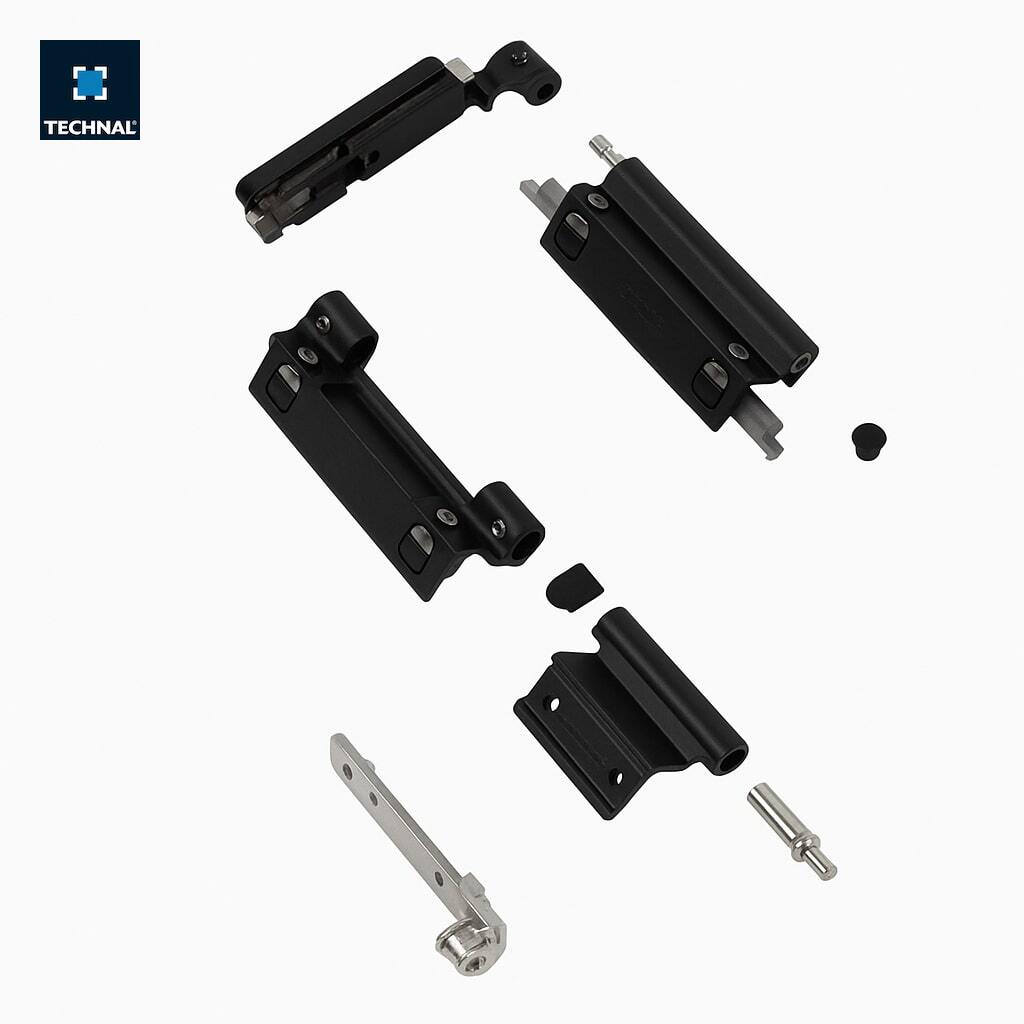

• Base Black – available variant.

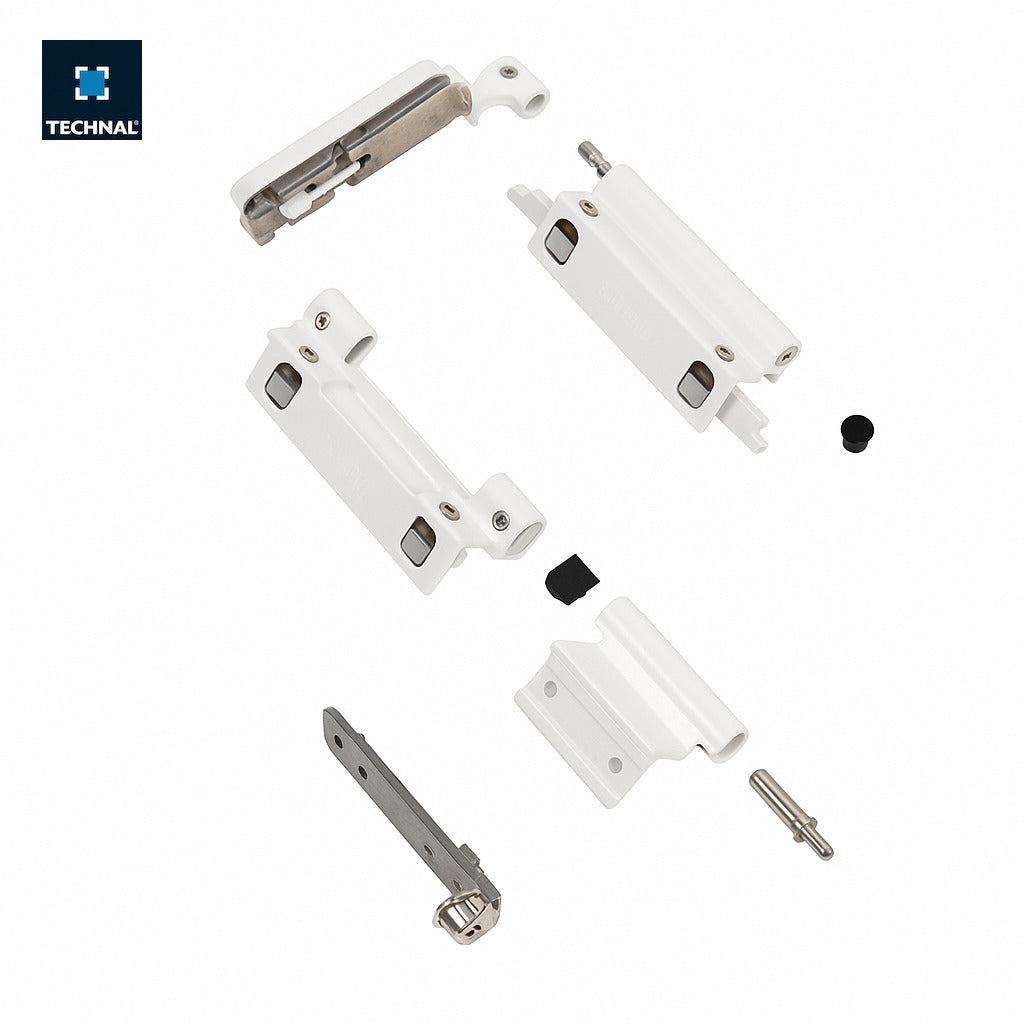

• Base White – available variant.

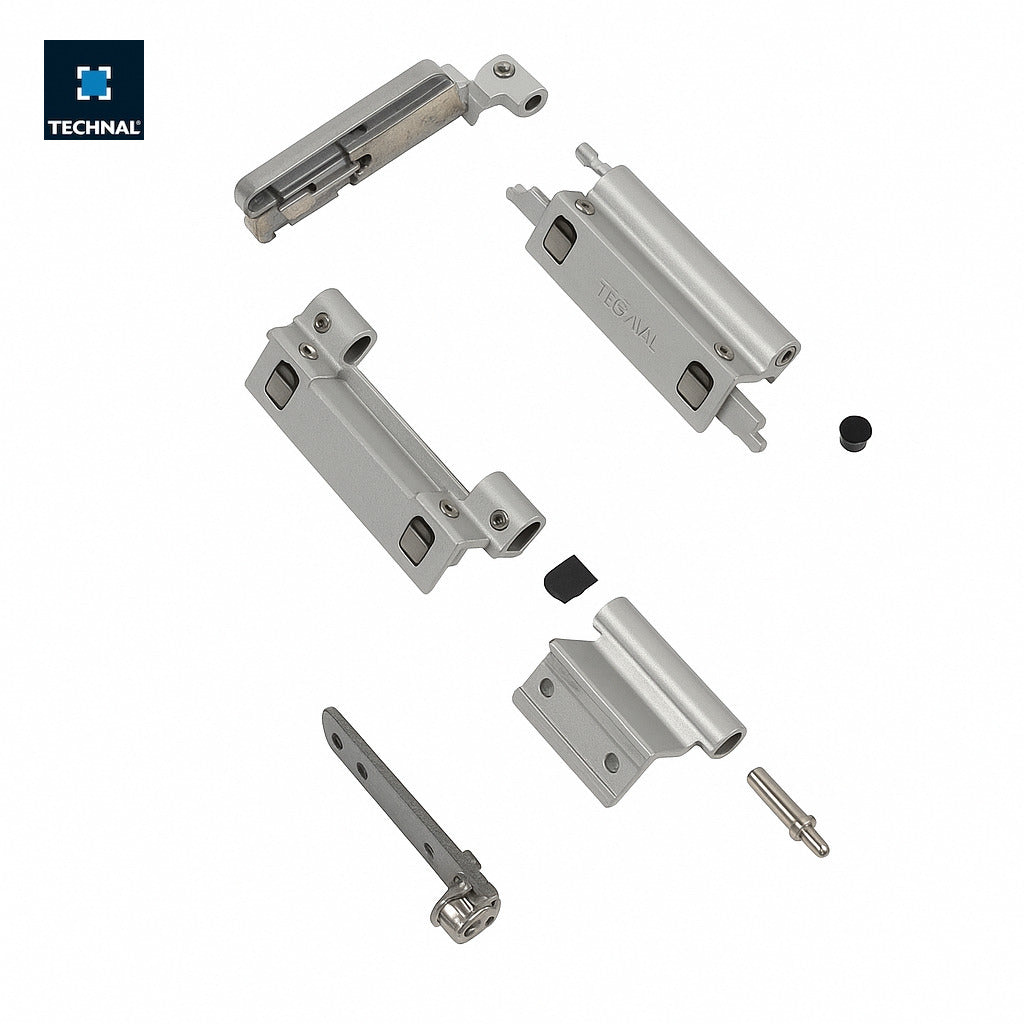

• XFITSILVER – available variant.
• Other finishes – lacquered to order to specification.

Important: TECHNAL® does not accept exchanges or returns for colour reasons on lacquered-to-order parts.

Compatibility

Compatible with TECHNAL Soleal FY55, FY65 and FY75 tilt-and-turn windows and French doors. Check reference T940023 and the sash configuration before replacement.
