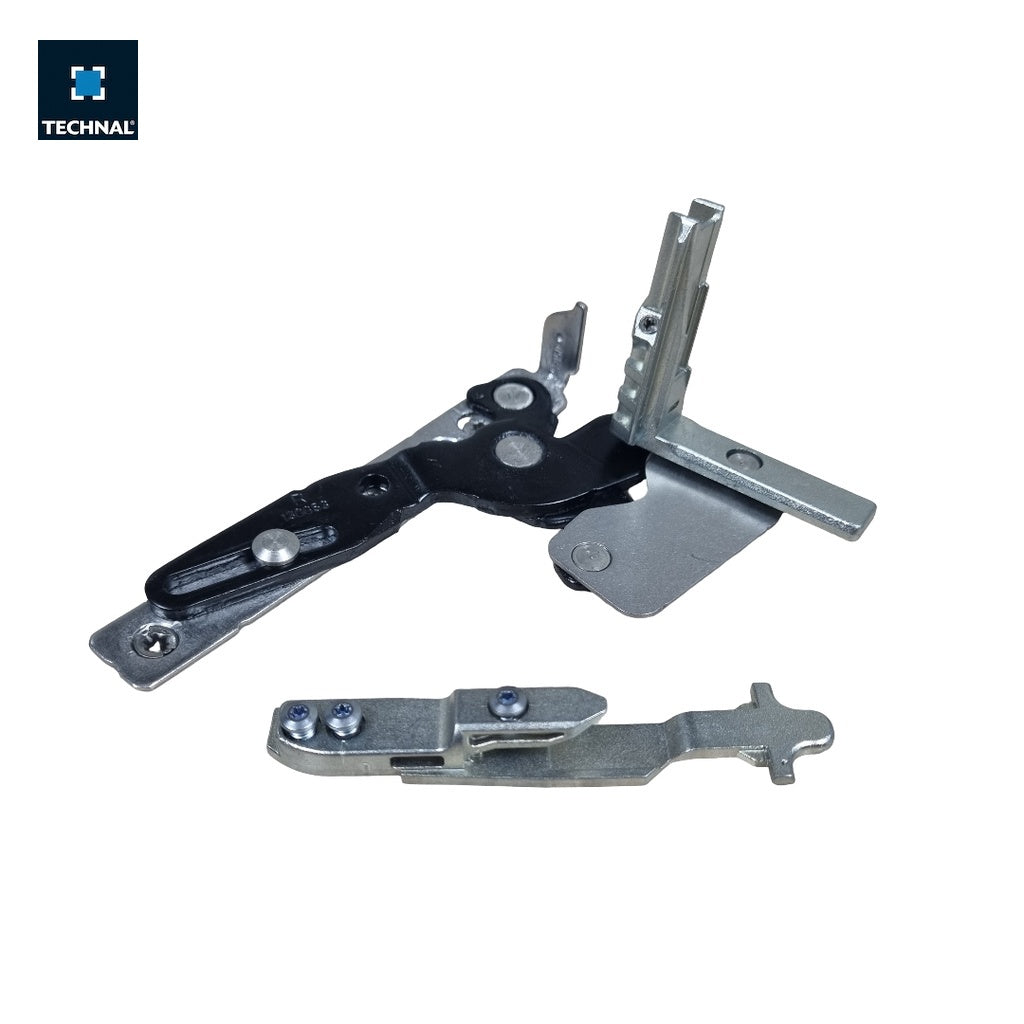

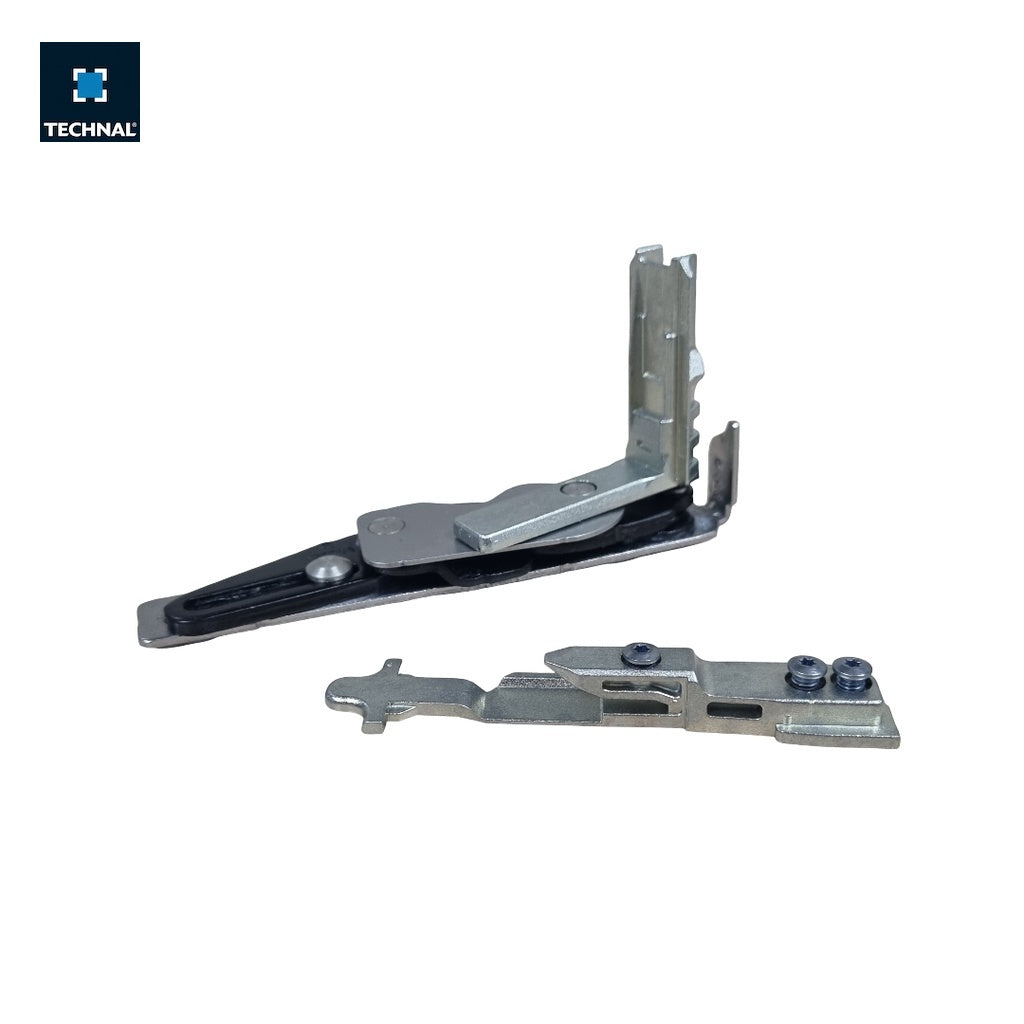

TFZ60002 TECHNAL Right-hand bottom pivot (110kg)

The TFZ60002 TECHNAL bottom right hinge is a concealed hinge designed for window sashes up to 110 kg, ensuring smooth operation and a high load capacity. In combination with reference TFZ60020 TECHNAL load transfer, the load-bearing capacity of the assembly increases to 160 kg, allowing use on large sashes with complete safety.

Technical specifications

• Reference: TFZ60002
• Compatible system: TECHNAL Soleal FY55 / FY65 / FY75 / NEXT 65 / NEXT 75
• Type: Bottom concealed hinge, right-hand opening
• Load capacity: up to 110 kg (160 kg combined with TFZ60020)
• Material: Metal

Available colours

• No colour finish — concealed technical part (not visible after installation), permanent stock

Compatibility

Suitable for installation on TECHNAL Soleal FY55, FY65, FY75, NEXT 65 and NEXT 75 casement and tilt-and-turn windows. Contact our team if you have any doubts about compatibility with your existing installation.
