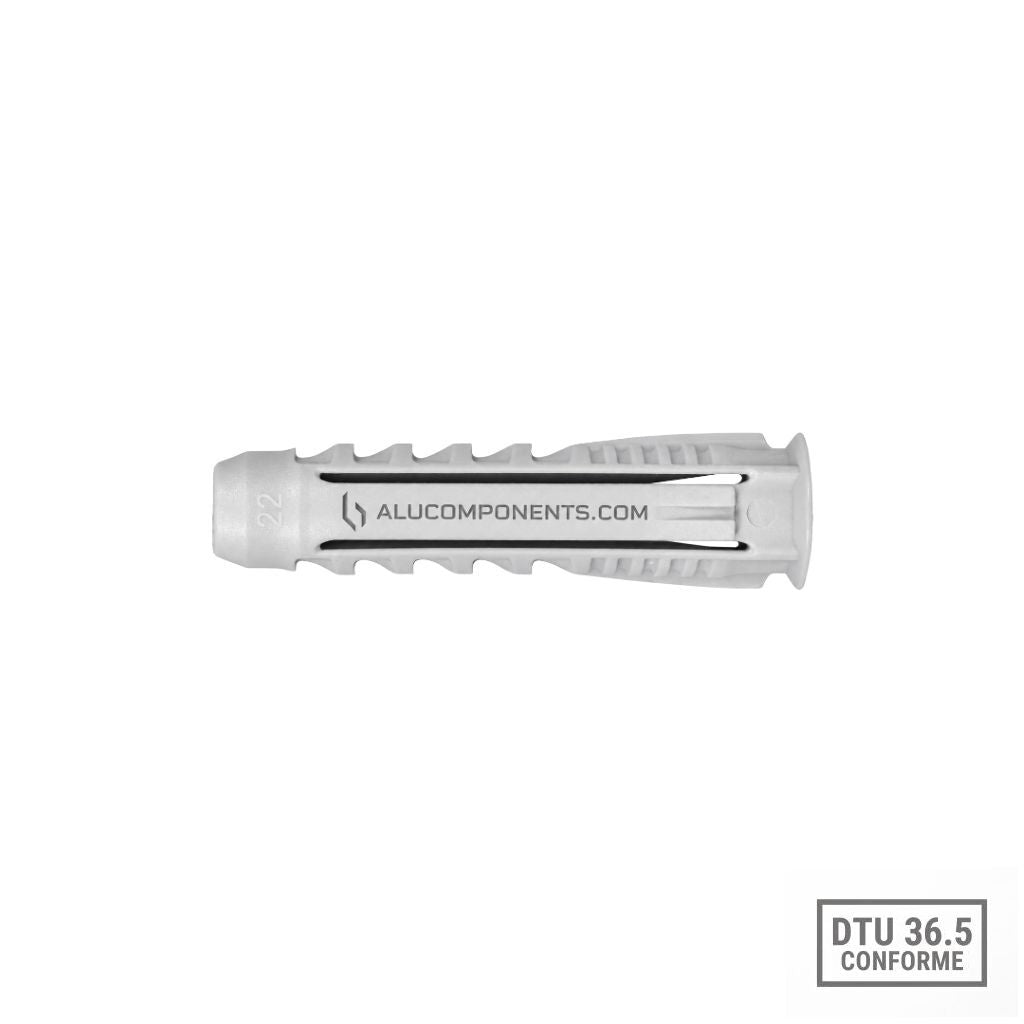

TXH 10x50 Expansion Wall Plug for Window Fixing TECHNAL

The TXH 10x50 expansion wall plug is designed for fixing brackets, angle plates and anchoring supports used in TECHNAL aluminium joinery to the building structure. Its expansion design anchors the assembly to the substrate using the TRH-FT-7-70 stainless steel screw.

Technical specifications

• Reference: TXH 10x50
• Type: Expansion fixing wall plug
• Diameter: 10 mm
• Nominal length: 50 mm
• Total length: 60 mm
• Application: Fixing brackets, angle plates and anchoring supports for aluminium joinery to the building structure
• Pack: Bags of 10 units or boxes of 100 units

Compatibility

Compatible with TECHNAL references for fixing joinery to the building structure:

T480015, T480016, T480017, TAZ0344, T700012, T700013, T700014, TFY3745, TFY3746, TFY3747, TFY3748, TGY3725, TGY3726, TGY3727, TGY3728, TGY3729, TGY3730, T400045, TGY3837, TGY3853, T480004, TB230, TFY3729, TCZ33340, TCZ33341, TCZ33342, TCZ33343, TCZ33419, TCZ33420, TCZ33234, TCZ33020, TCZ33000, TCZ33002, TCZ33162 and TCZ30001.

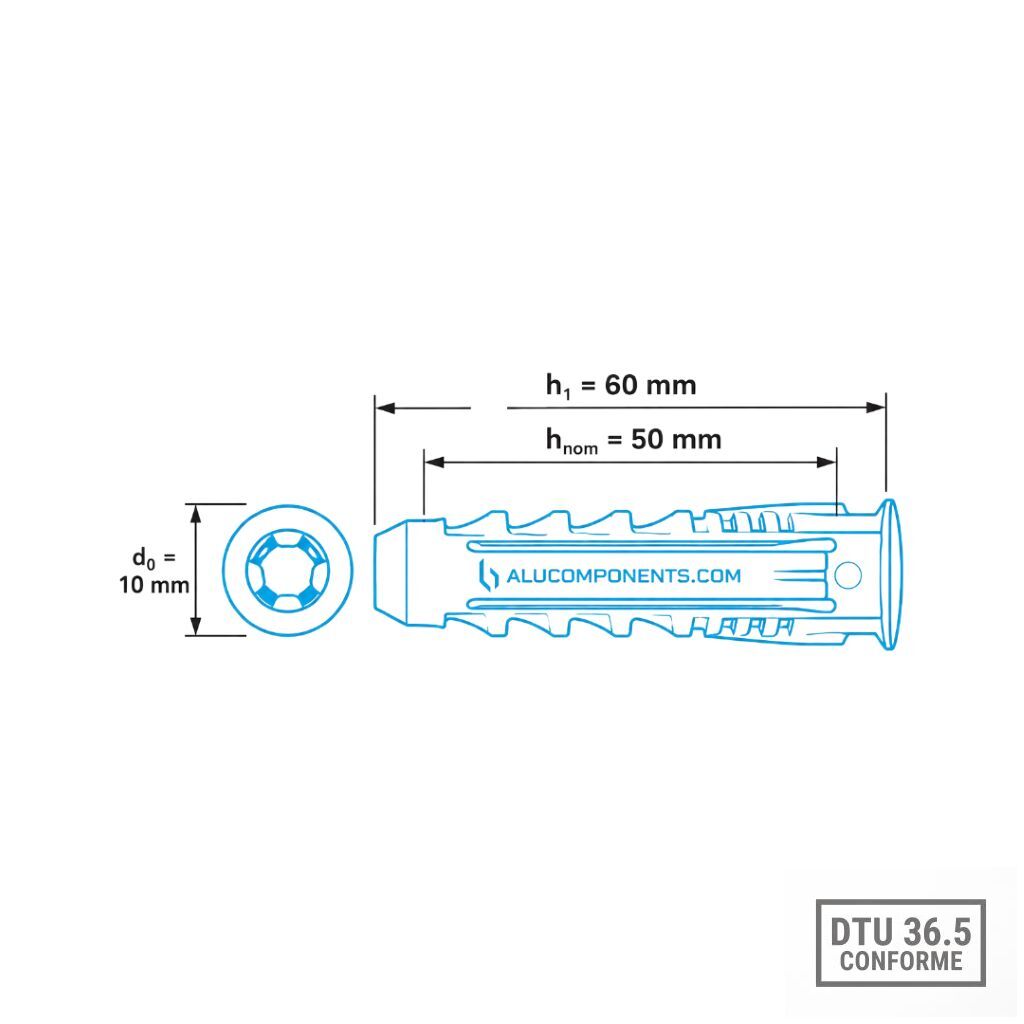

The technical drawing shows Ø 10 mm, nominal length of 50 mm and total length of 60 mm. Always verify the suitability of the wall plug for the building substrate before installation.

Fixing bracket for aluminium joinery, compliant with the requirements of NF DTU 36.5.
